EcoSmart Fire XL700 Bioethanol Burner

£1,593.00

~~£1,770.00~~ £1,593.00

Sale Sold out

Tax included. FREE Shipping Included*

Install Location Indoor Outdoor

Colour Stainless Steel Black

Product variants

Quantity

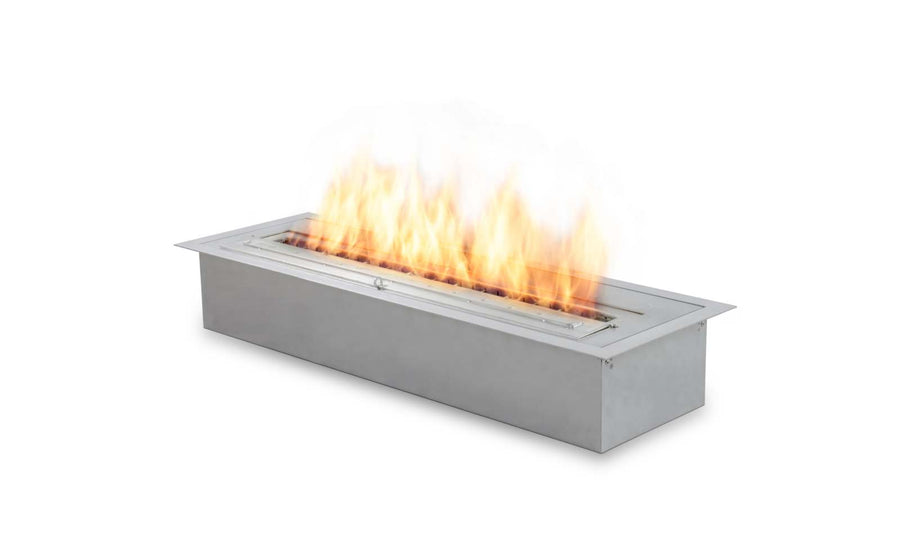

EcoSmart Fire XL700 Bioethanol Burner

An elongated flame, easily integrated into tailored settings. The XL700 holds 7L of fuel, burns for up to 12 hours and is the bioethanol burner inside the Grate 36 and many Flex firebox inserts.

7L bioethanol burner with a 700mm elongated flame
4kW heat output — warms rooms up to 50m²
Burns 9–12 hours on a single fill
The burner inside the Grate 36 and many Flex inserts
Grade 304 stainless steel, in stainless or black
Works indoors and out (indoor installs require the XL700 Top Tray)

View full details

In the box

What's included with the Ecosmart XL700 Bioethanol Burner

Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle...

Jerry Can 5L

Safety features include automatic stop flow, fast flow rate, locking thumb button control, and self-venting...

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of...

Lighting Rod

This operational accessory enables you to safely adjust the slider position of the Burner at...

EcoSmart XL700 Bioethanol Burner Information

Choosing your FinishTwo finishes. Same burner.

BioethanolStainless steel Grade 304,Black is powder-coated steel

Volume CapacityHow much fuel

Bioethanol7 L1.8 gal

Thermal OutputHow much heat it creates

Bioethanol4 kW / 14.4 MJ/h13,650 BTU/h

Burn TimeHow long it lasts

Bioethanol9–12 hours (on 7L)

Fuel ConsumptionHow much fuel it consumes on MAX

Bioethanol0.7 L/h0.18 gal/h

Heats on AverageHow much space it heats

Bioethanol50 m²538 ft²

Minimum Room SizeRequired for this burner

Bioethanol90 m³3,178 ft³

Customise your fire

Optional Accessories for the EcoSmart XL700

e-NRG Bioethanol Fuel by EcoSmart £125.00 In stock

EcoSmart Fire - XL700 Top Tray - Fireplace Tray £175.00

EcoSmart Fire - Plasma Fire Screen - Fireplace Screen £695.00

EcoSmart Fire - Twin Feet Fixings - Fireplace Screen £445.00

EcoSmart Fire - Black Glass Charcoal - Decorative Media £110.00

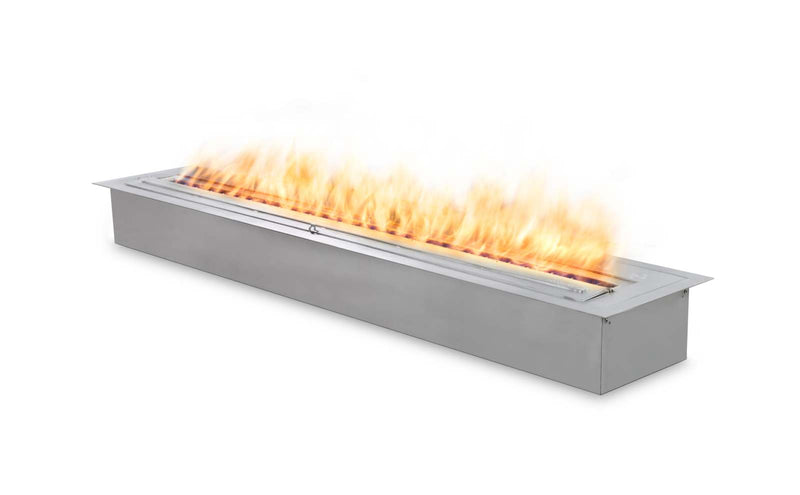

EcoSmart Fire XL1200

Bioethanol Burner

View XL1200 →

About this bioethanol burner

EcoSmart Fire XL700 Bioethanol Burner

The burner behind the Grate 36. And a design tool in its own right.

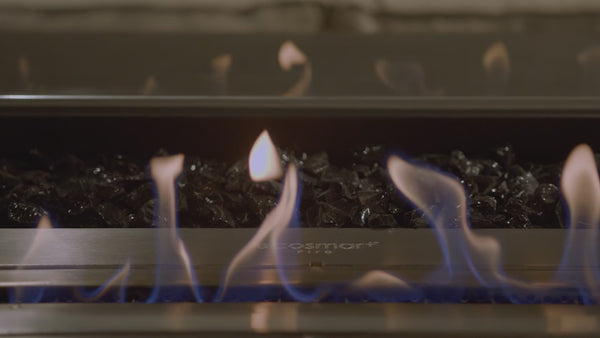

The XL700 holds seven litres of bioethanol fuel. One fill gives you an elongated flame that runs the full 700mm and burns for nine to twelve hours. No flue. No chimney. No gas line.

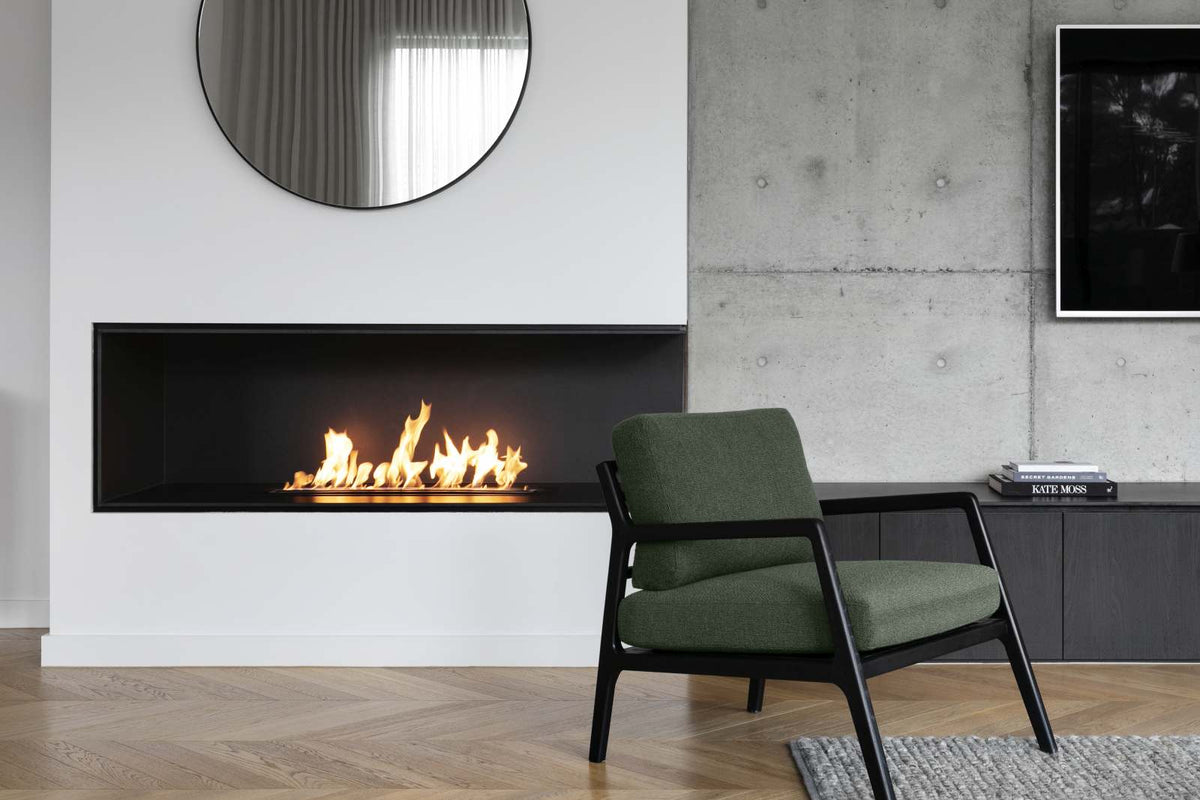

EcoSmart build the Grate 36 fireplace grate around this burner. It's the same ethanol burner inside many of their zero-clearance Flex firebox inserts. But it works on its own terms too: set it into bespoke cabinetry, a floating timber shelf or a stone bench, indoors or out. The body is Grade 304 stainless steel, so it sits comfortably with almost any material you build around it. Indoors, the XL700 Top Tray is a required part of the installation. Not an optional extra.

Sizing is simple. The XL700 suits longer builds — a wide media wall, a full-width hearth, a commercial fit-out. For compact settings, the XL500 does the same job at 500mm. Replacing an old grate? Start here. The XL700 is the burner the Grate 36 was designed around.

Everything you need is in the box: a 5L jerry can with a bottle adaptor for refuelling, a lighting rod, a fire lighter and XL baffles to regulate the flame. The XL700 is OMNI-Test listed to UL 1370 and certified by BSI to EN 16647.

Why bioethanol?

All the atmosphere of a real flame — with none of the fixed infrastructure

Clean & simple

Clean burning — no smoke, soot or ash
No flue, chimney or gas connection needed
No electricity required
Real flame with low maintenance
Burns renewable, eco-friendly fuel

Good to know: ambience first, heating second — real flame atmosphere without the building work

Flexible living

Portable and easy to reposition
Ready to use straight out of the box
No installation costs or engineer visits
Ideal where gas or a chimney isn't an option

Perfect for: flats, listed buildings and gardens — anywhere a fixed fire isn't practical

Care & Safety for EcoSmart XL700 Bioethanol Burners

Looking after your XL700 Bioethanol Burner

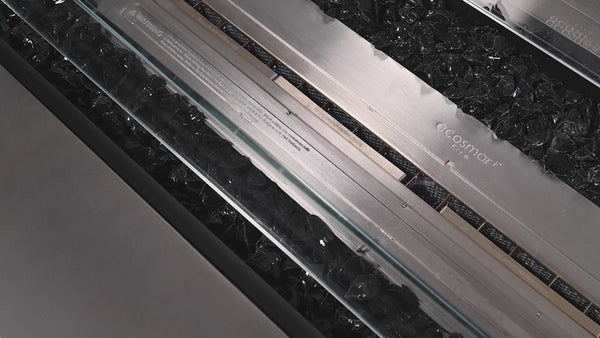

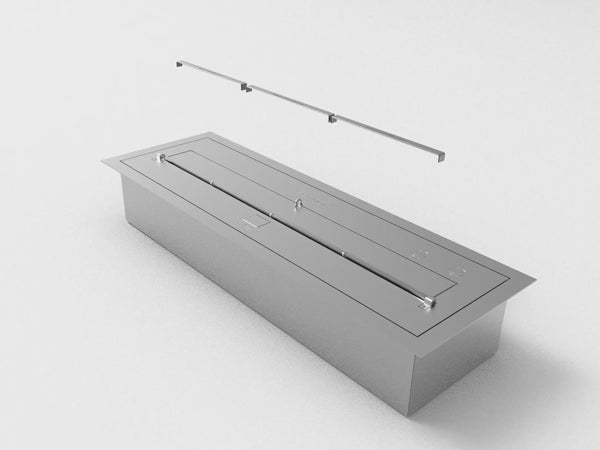

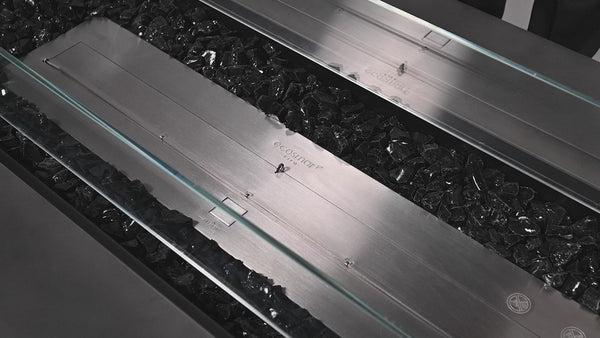

Light the burner with the fire lighter through the lighting rod, and use the same rod to adjust the slider and put the flame out. Never lean over the burner to do it. Slot the XL baffles in to regulate and steady the flame; take them out for the fullest flame. Outdoors, the burner is ready as it comes. Indoors, fit the XL700 Top Tray before operating: it protects against heat transference and catches accidental spillage.

Fuel safety

Fill only through the dedicated filling point, using the 5L jerry can and bottle adaptor. Safety markings and volume guides show the maximum fill line. Let the burner cool fully before you refill. Use bioethanol fuel only — we recommend e-NRG.

EcoSmart XL700 Bioethanol Burner Specifications

Application Indoor & Outdoor

Dimensions L 700 × W 195 × D 112 mm

Product weight 12.54 kg (27.6 lb)

Burner weight 9.16 kg (20.2 lb)

Materials Stainless Steel Grade 304

Included burner ESF.B.XL7

Colour Stainless SteelBlack

EcoSmart XL700 Frequently asked questions

What is an XL700 bioethanol burner?

A bioethanol burner (some people write it "bio ethanol burner") is a burner that runs on bioethanol fuel instead of wood or gas. You fill it, light it and get a real flame. No flue, chimney or fixed installation. The XL700 is a bioethanol burner with a 7L capacity and a 700mm elongated flame.

What's the difference between a bioethanol burner and a bioethanol fireplace?

A fireplace is the whole unit: enclosure, surround and burner. An ethanol fireplace burner like the XL700 is the engine inside. Buy the burner when you're building your own setting, or when you're fitting a Flex firebox insert or the Grate 36.

Is the XL700 the burner inside the Grate 36?

Yes. EcoSmart build the Grate 36 fireplace grate around the XL700. It's the key component. The same burner sits inside many of their zero-clearance Flex firebox inserts too.

Can I use the XL700 ethanol burner indoors?

Yes. The XL700 is rated for indoor and outdoor use. Indoors, you must fit the XL700 Top Tray before operating it, and your room needs to be at least 90m³.

How long does the XL700 burn on one fill?

Nine to twelve hours from the full 7L. It consumes fuel at 0.7 litres per hour, and fitting the XL baffles stretches the burn towards the top of that range.

How much heat does the XL700 produce?

4kW, or 13,650 BTU/h. On average it heats around 50m², so it takes the chill off a large living room rather than replacing central heating.

Can I use the XL700 as a bioethanol burner insert in my own design?

Yes. That's what it's built for. Cabinetry, media units, stone benches, pillars. Check the physical model dimensions against your cut-out before installation, and fit the Top Tray for any indoor build.

Does the XL700 need a chimney, flue or electricity?

No. Nothing but the burner and the fuel. That's what makes it a design tool: it goes where a chimney never could.

What fuel does the XL700 use?

Bioethanol fuel. We recommend e-NRG. The included 5L jerry can and bottle adaptor make refuelling straightforward.

What's the difference between the XL700 and the XL500?

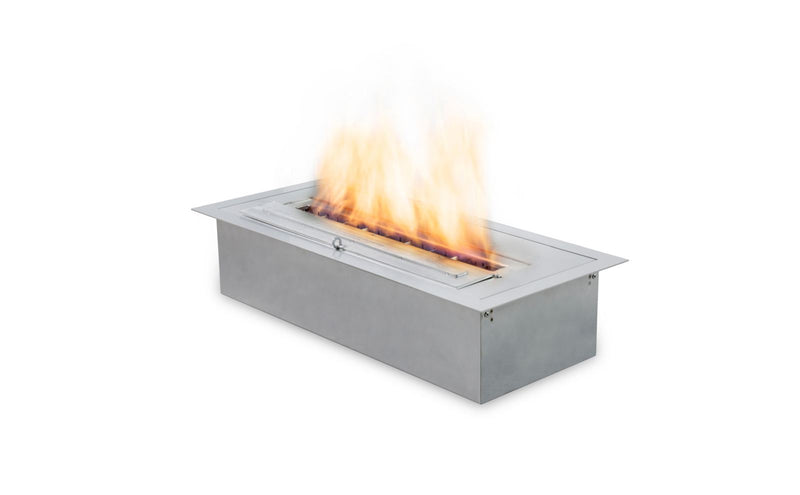

Length and capacity. Both are linear bioethanol burners with the same build quality. The XL500 is 500mm with a 5L tank and suits compact media units. The XL700 is 700mm with a 7L tank, more heat and a bigger room rating — and it's the burner the Grate 36 takes.

Is the XL700 an ethanol burner or a bioethanol burner?

Same thing. Bioethanol is the full name of the fuel. Ethanol burner is the shorthand EcoSmart themselves use for the range. One burner, two names.
