Planika Forma 1200 Bioethanol Fireplace Island with FLA4 990 Logs
Planika Forma 1200 Bioethanol Fireplace Island with FLA4 990 Logs
Couldn't load pickup availability

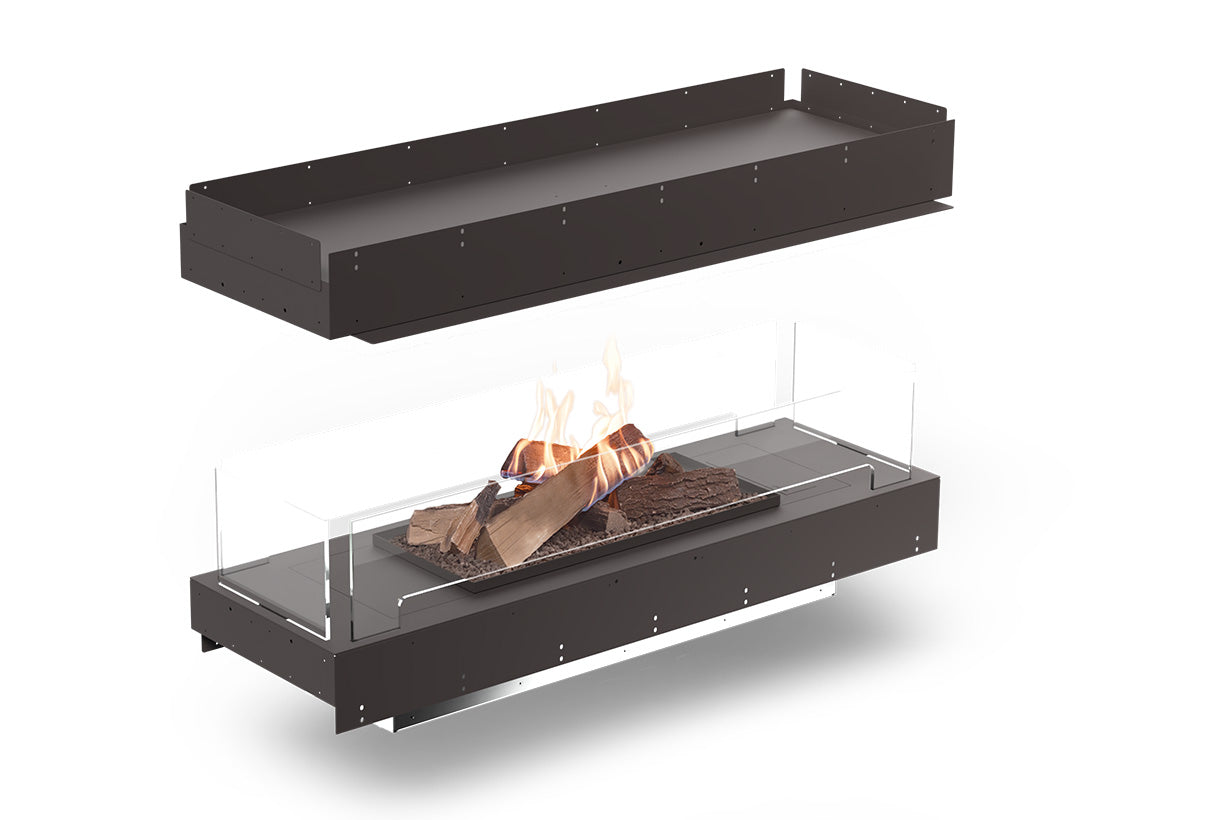

Planika Forma 1200 Bioethanol Fireplace Tunnel with FLA4 990 Logs
The Planika Forma 1200 Tunnel Bioethanol Fireplace with FLA4 990 Logs is a contemporary see-through fireplace, ideal for visually connecting and dividing open spaces. Designed with the advanced Flogs 990 (FLA4 Logs) Automatic BEV® Burner, this tunnel model delivers clean-burning, real flames without the need for a flue or chimney, thanks to Planika’s exclusive BEV® Technology.
The tunnel firebox offers a beautiful linear flame that can be enjoyed from both sides, making it perfect for installations between living and dining areas, entryways, or commercial settings. Its zero-clearance firebox enables safe built-in installation into combustible structures or custom cabinetry. The automatic refilling system and fully integrated safety sensors ensure effortless and reliable operation every time.
- Fireplace Model: Forma 1200 Tunnel
- Burner Model: Flogs 990 (FLA4 Logs) BEV® Burner
- Fuel Tank Capacity: 5.5 L / 1.45 gal
- Maximum Burn Time: Up to 8 hours
- Maximum Heat Output: 7.0 kW / 23,885 BTU/h
- Flame Height Regulation: 6 stages
-
Fuel Type: Bioethanol 95–96.6%
- Flue: Not required
- Zero-Clearance Firebox: Yes
- Air Change Rate: 1 room volume per hour
- Power Supply: 230 V / 115 V
- Finish: Black powder coating
- Materials: Steel, galvanized steel, tempered glass
- Application: For indoor use only
- Control: Mobile app (included), LCD touch panel (included), remote control (optional)
- Automatic Refilling: Yes, with external pump
- Warranty: 5-year warranty
- Minimum Room Size: 70 m3 / 2,472 ft3
Control Options:
– ‘Planika BEV’ App (included)
– Touch control panel (included)
– Remote control (optional)
Materials
Materials
steel, galvanized steel, toughened glass
Finish: black powder coating
Control options
Control options
remonte and wi-fi included, SHS optional
Included Accessories
Included Accessories
Size
Size
Please see the fireplace
specification for sizes
-
Volume Capacity
5.5L
-
Minimal Room Size
70m³
-
Thermal Output
7 kW
-
Burn Time
8 h
-
Application
Indoor use only
-
Product Weight
64.2 kg
-
Installation manual
download PDF file -
Fireplace Specification
download PDF file
Planika
Forma Fireplaces
Best build quality
The product passed extensive tests carried out by the leading certification institutes. It is manufactured according to UL standards and is O-TL certified, meeting the most demanding safety and quality requirements.
Automatic FLA4 Burner
The automatic burner with the patented BEV Technology® is the most advanced product in the industry ensuring the cleanest burning process without any smoke, smell or ash. The flame is produced by combusting ethanol vapors and has no direct contact with the liquid fuel.
Remote Control
Control the fire with the included remote, app on your smartphone or home automation system.
Safety BEV Technology®
Net Zero fireplace with the BEV Technology®
The dedictaed toughened glass panels cover the
flame making it stable and even.
No Connections
Light up outdoor spaces with a soft, alluring glow - easily and efficiently, without cumbersome connections.
Colours
Available in a timeless black finish.
No Flue, No Chimney, No Vent
Fuelled by clean-burning Fanola bioethanol, our burners produce a beautiful orange flame without any smoke, soot or ash.
Dangerous Manual Ethanol Fireplace Vs Advanced Automatic Products
BEV Burning Ethanol Vapours Technology
