Minimal Room Size: 110m³

EcoSmart

EcoSmart - Flex Fireplace 86DB.BX2 - Double Sided - Black

EcoSmart - Flex Fireplace 86DB.BX2 - Double Sided - Black

Regular price £6,396.00 GBP
Regular price £7,995.00 GBP Sale price £6,396.00 GBP
Sale Sold out
Burner colour

EcoSmart - Flex Fireplace 86DB.BX2 - Double Sided - Black

With two open sides, Flex Double Sided fireplace insert creates the perfect room divider. The see-through design provides unobstructed views of the flickering flame from the front and the back, infusing warmth and ambiance into two adjacent rooms. The Flex 86DB.BX2 includes a design that features Decorative Boxes on either side of the firebox. This 2 Box-design boasts an attractive visual symmetry while the glass panels that divide the Decorative Boxes and the Firebox create an uninterrupted, streamlined look. One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL900 burners. With an overall heating capacity of 120m2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants. Each burner holds 9L of fuel, and can deliver a stunning flame for up to 13 hours.

Providing unobstructed views of EcoSmart’s flickering flame from both sides, Flex DB Firebox’s see-through design injects warmth and ambiance in two adjacent rooms.

Materials

Mild Steel & Toughened Glass

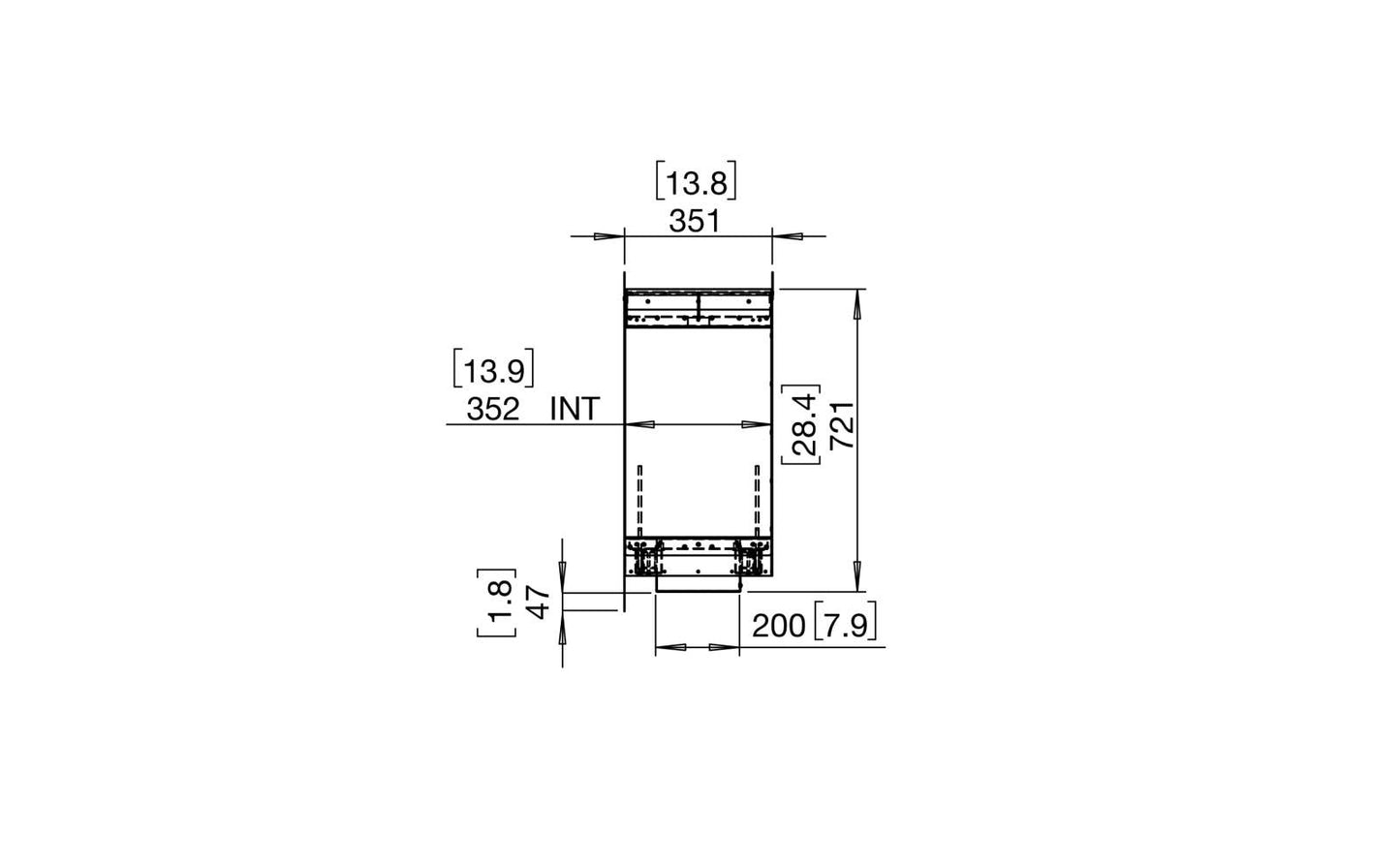

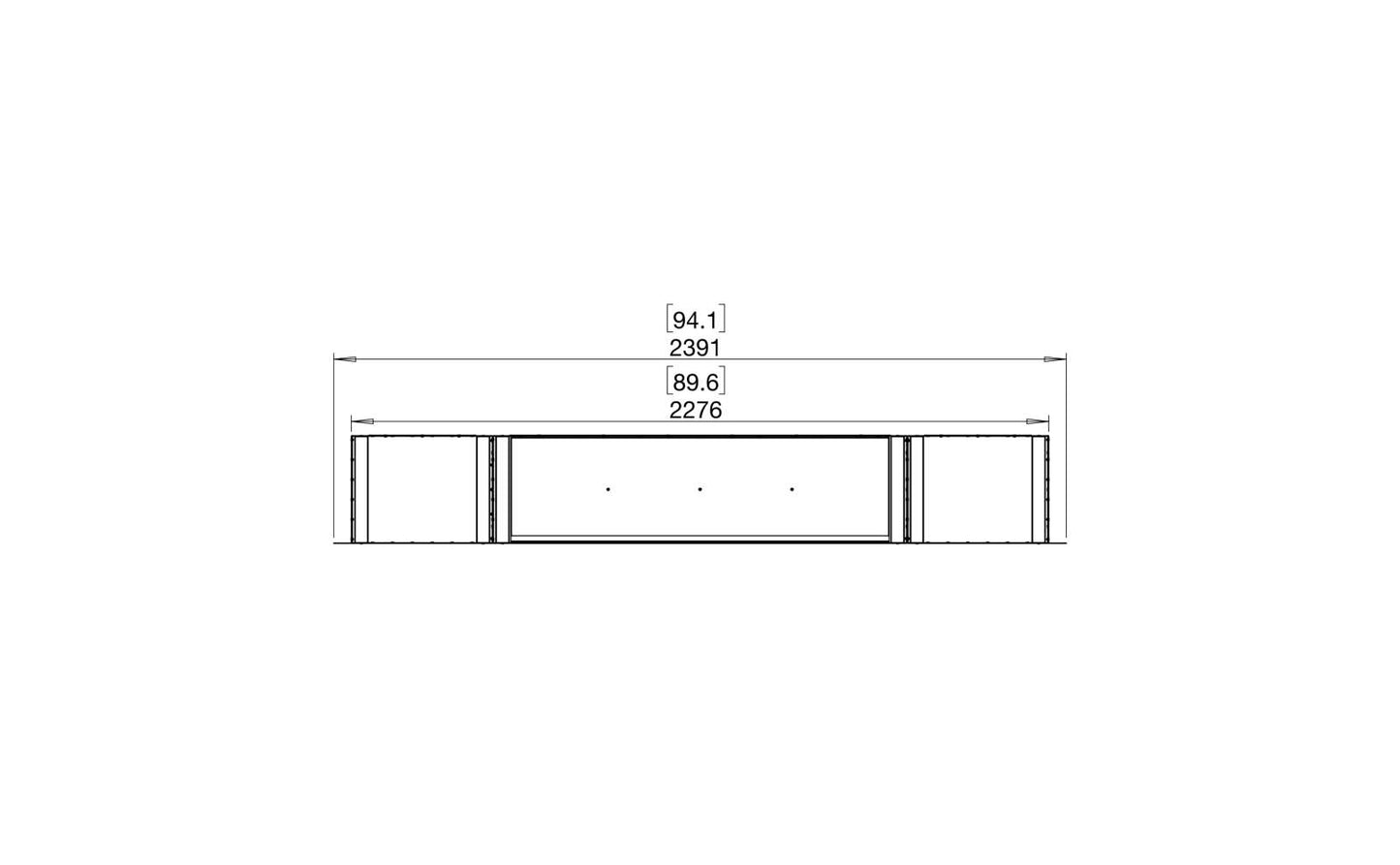

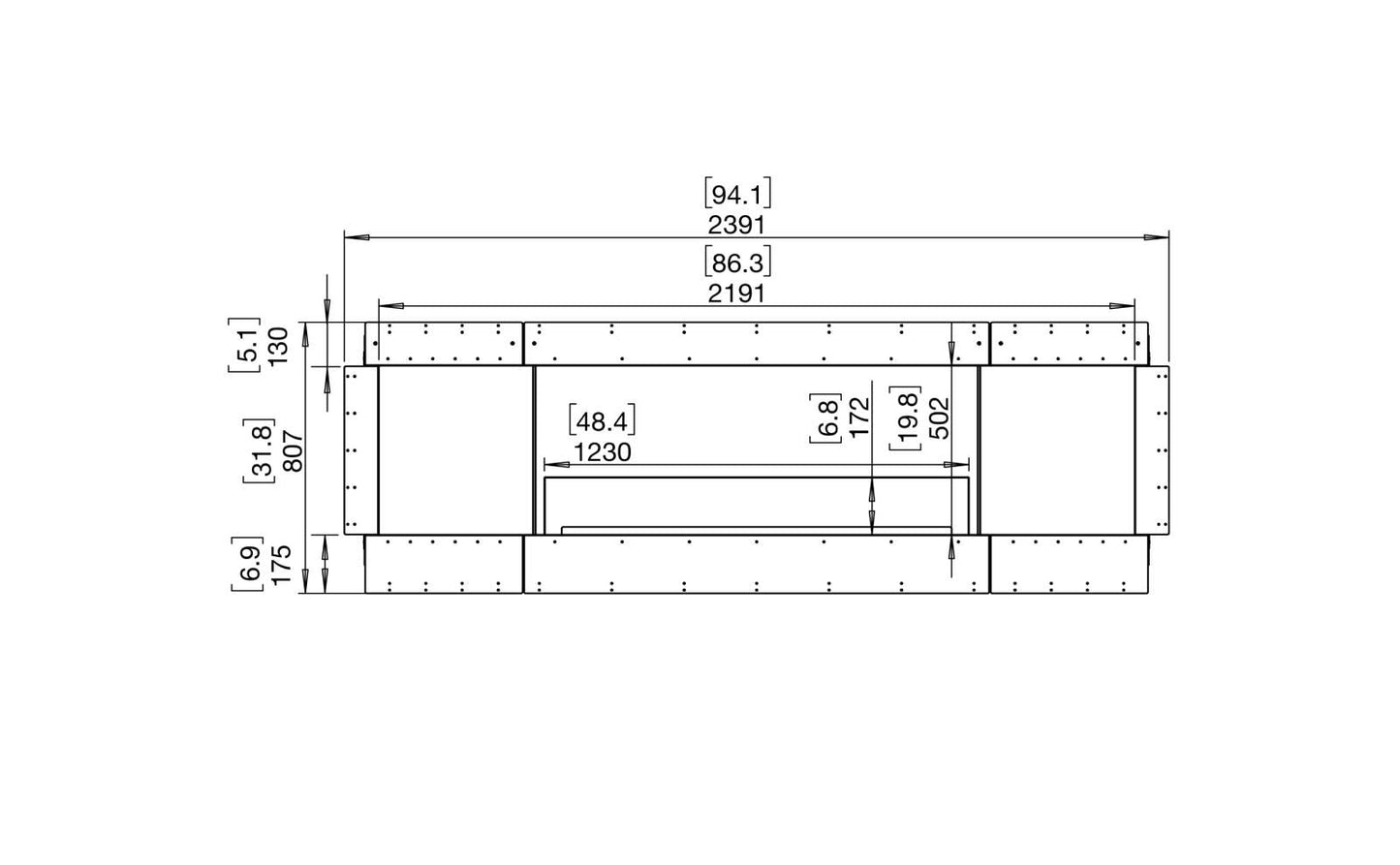

Dimensions and Basic Information

Width: 2391mm

Depth: 354mm

Height: 807mm

Product weight: 109kg

Burner weight: 11.90kg

Included burner: ESF.B.XL9

Included Accessories

Fire Lighter

Lighting Rod

Jerry Can 5L

Black Glass Charcoal

XL Baffles

View full details
  • Volume Capacity

    9 L

  • Minimal Room Size

    110m³

  • Thermal Output

    15000 BTU/h

  • Burn Time

    8-13h

  • Application

    Indoor & Outdoor

  • Product Weight

    109kg

ECO SMART+

Flex Fireplace

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders, architects, interior designers, landscapers and homeowners.

Built to Last a Lifetime

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoor.

Quick and Easy Installation

Requiring virtually no assembly, Flex Fireplaces are designed to be placed into the desired location, safely secured into position, and operated immediately.

Glass Fire Screen/s

The toughened glass fire screen stabilises the flame in windy conditions. The Integrated windscreen sits flush behind the frame.

No Connections

Light up outdoor spaces with a soft, alluring glow - easily and efficiently, without cumbersome connections.

Colours

Available in a timeless black finish, Flex Fireplaces come with Stainless Steel or Black burners.

Single Room Application

Bay fireplaces feature three open sides - view the flame from the front and both sides.

No Flue, No Chimney, No Vent

Fuelled by clean-burning e-NRG bioethanol, our burners produce a beautiful orange flame without any smoke, soot or ash.

Forefront of Fireplace Technology

Backed by 17 years of research and development, and third-party certification, each model in the Flex series features world-class safety and fuel ignition technologies.

Global Compliance

These models comply with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant.

Burners and e-nrg Fuel

Common Q&A's

Do they heat?

EcoSmart Fire’s indoor ethanol fireplaces are ventless, meaning all the heat stays in the room rather than escaping up a flue or chimney like it would with a traditional wood-burning fireplace. Increased heat retention also means increased fuel efficiency. EcoSmart Fire’s collection of ethanol fireplaces offer a heat output ranging from 5,000 BTU (15m2) - 20,000 BTU’s (65m2).

Are they easy to install?

EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.
Burner Installation Guide

  • Build burner cutout from non-combustible materials
  • Insert Top Tray
  • Drop in the burner

Why use an ethanol fireplace?

An ethanol fireplace is an eco-friendly and cost-effective alternative to gas fireplaces and wood burning fireplaces. Enjoy the warmth and aesthetic benefits of a traditional fireplace without the smoke, soot or ash in your home. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol
fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors.

  • Produces a vibrant orange flame
  • Efficiency over 90%
  • Clean-burning. No smoke, no ash
  • No gas, no electricity, no flue
  • Quick and easy installation

How long will the fuel burn?

This is dependent on the burner and how it’s used, as mentioned, you are burning the vapour that evaporates from the liquid so the size of the mouth of the burner will affect this greatly. A larger more open mouth means more surface area for the ethanol fuel to evaporate from. This is also why most of our burners* will have some type of baffle or sliding baffle to increase burner efficiency; a smaller surface area for fuel to evaporate from means slower evaporation, lower heat output and better fuel efficiency. *Excluding AB3 and VB2 burners.

How do they work?

EcoSmart Ethanol Burners create a flame by burning the vapour that evaporates off of the bioethanol liquid fuel. The fuel is filled through a dedicated filling point where it flows into the fuel reservoir, which is where it is both stored and burned from; this can be seen when you open the lid on the burner.

What’s included when you purchase an EcoSmart ethanol burner?

  • Jerry Can
  • No Spill Nozzle
  • Bottle Adaptor
  • Lighter
  • Lighting Rod
  • Top Tray
  • XL Baffles (XL Burners only)
  • AB8 Efficiency Ring (AB8 Burner only)
  • Extension Spout (AB3 Burner only)

Do they need power or a flue/chimney?

Ethanol fires do not require a chimney, vent, gas line, or electricity and can be installed virtually anywhere - indoors or outdoors. This means they do not require a specialised installer and can be moved from one area to another with relative ease.

How do I fill them?

With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.

  • Step 1 - Remove the bottle nozzle cap and carefully insert into the filling point.
  • Step 2 - Push and hold the green button.The nozzle will automatically stop filling once the reservoir is full.
  • Step 3 - Replace the nozzle cap. To turn the burner off simply close the lid, this will starve the flame of oxygen and extinguish it.
